Beskrivning

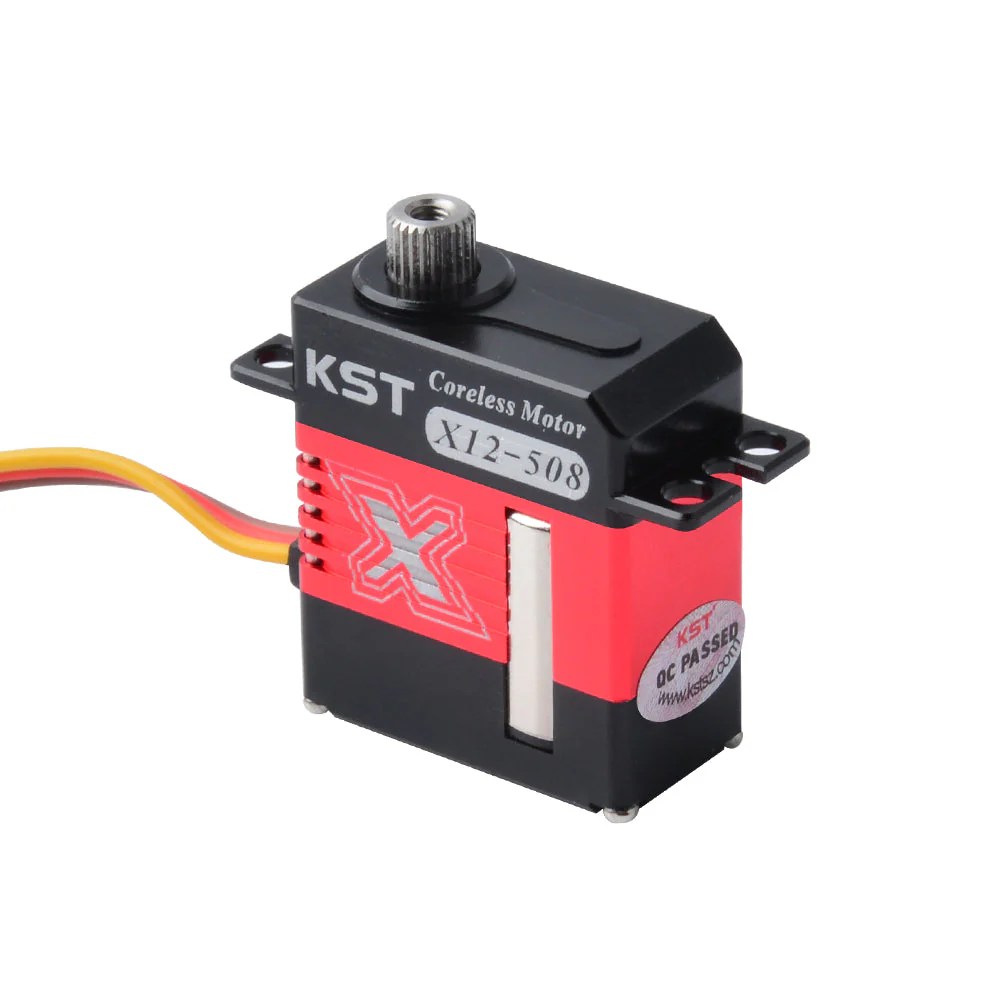

KST X12-508 v8 6.2kg 0.07s 20g

Starkt 12mm Servo för helikopter och 3D modeller typ Extreme Flight 48tum.

Voltage Range: DC6.0V-8.4V

• • Torque:
    4.2Kgf.cm@ 6.0V
    5.2Kgf.cm@ 7.4V
    6.2Kgf.cm@ 8.4V
  • Speed:
    0.09 sec/60°@ 6.0V
    0.08 sec/60°@ 7.4V
    0.07 sec/60°@ 8.4V
  • Working Frequency: 1520us/20KHz
  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Weight: 20g±10%

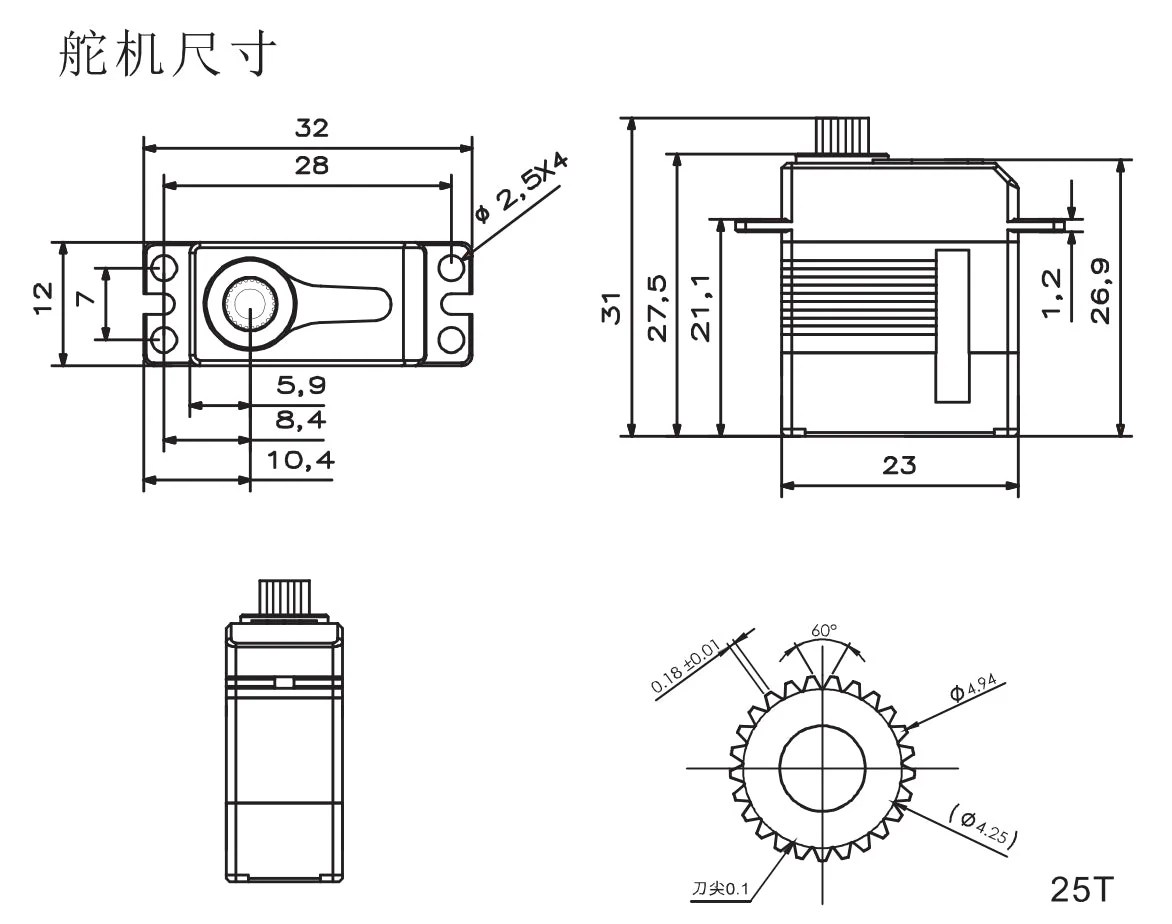

  • Case Dimensions: 23mm*12mm*27.5mm±0.2mm
