Beskrivning

KST X20 Combo 3st X20-2208, 1st X20-1035 Helikopter servo

En av marknadens bästa helikopter servo combo.

Features

• Brushless DC motor
• Extreme torque and Excellent speed
• Hardened steel gears
• 6 Ball bearings
• Ideal for 500 to 800 Class EP/GP Helicopters

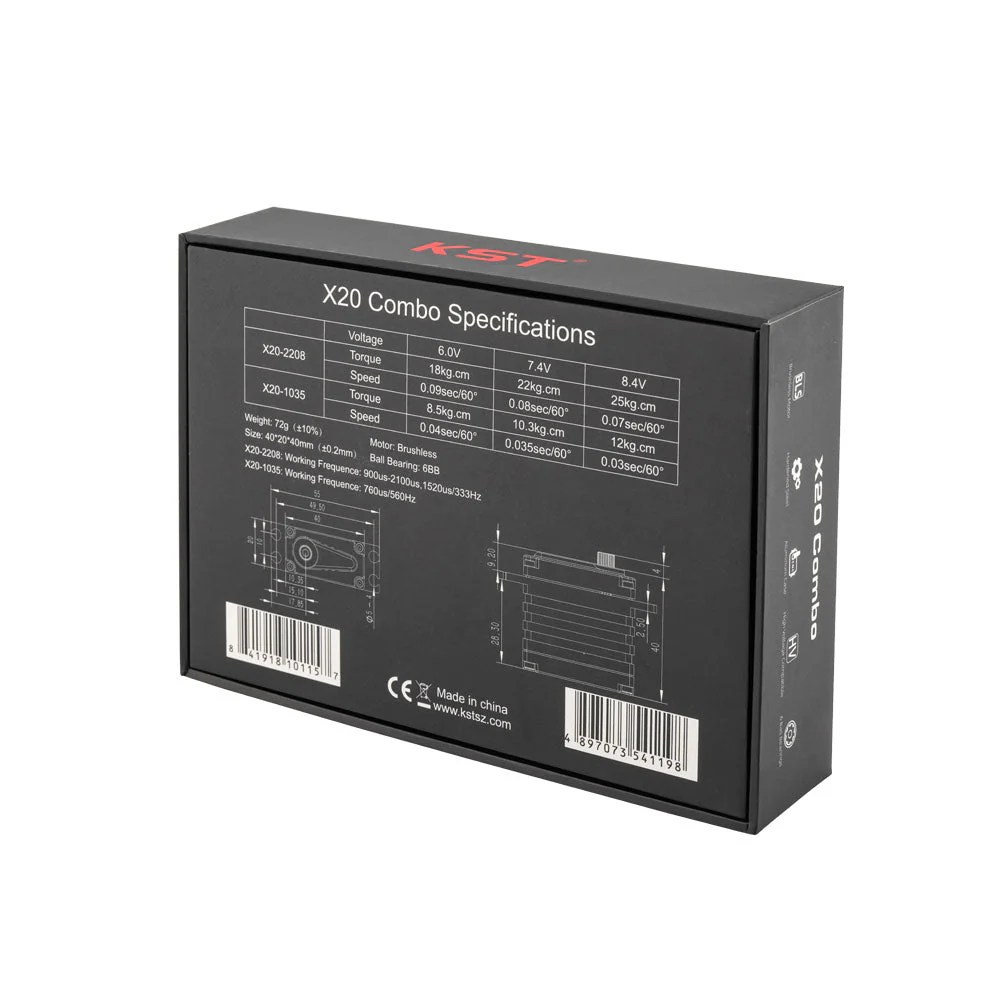

Specification

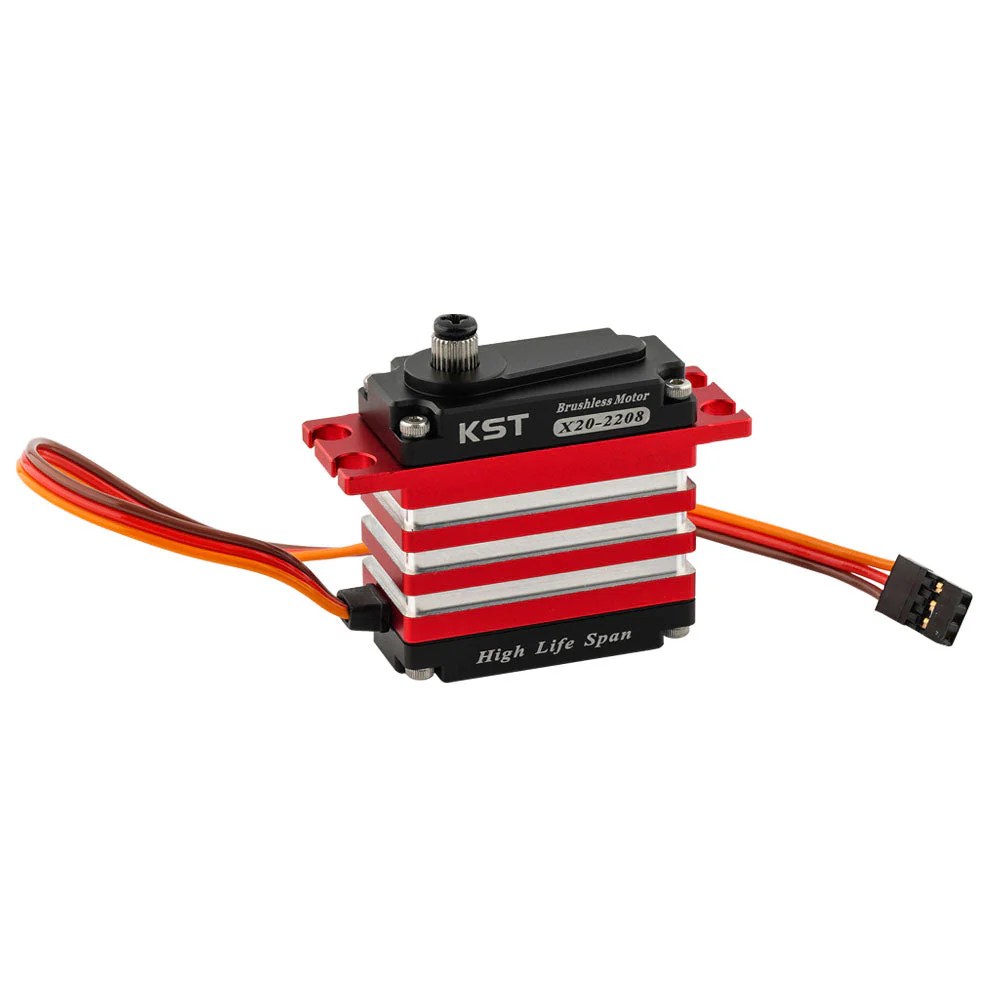

X20-2208

• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 1.8N.m@6.0V, 2.2N.m@7.4V, 2.5N.m@8.4V
• Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
• Working Frequency: 1520us/333Hz
• Default Travel Angle: ±50°=100°Total
• Total Temperature Range: -10°C…….+65℃
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel (HLS)
• Position Sensor: Potentiometer
• Case Dimensions: 40mm*20mm*40mm±0.2mm
• Weight: 72g±10%
• Ball Bearing: 6 BB

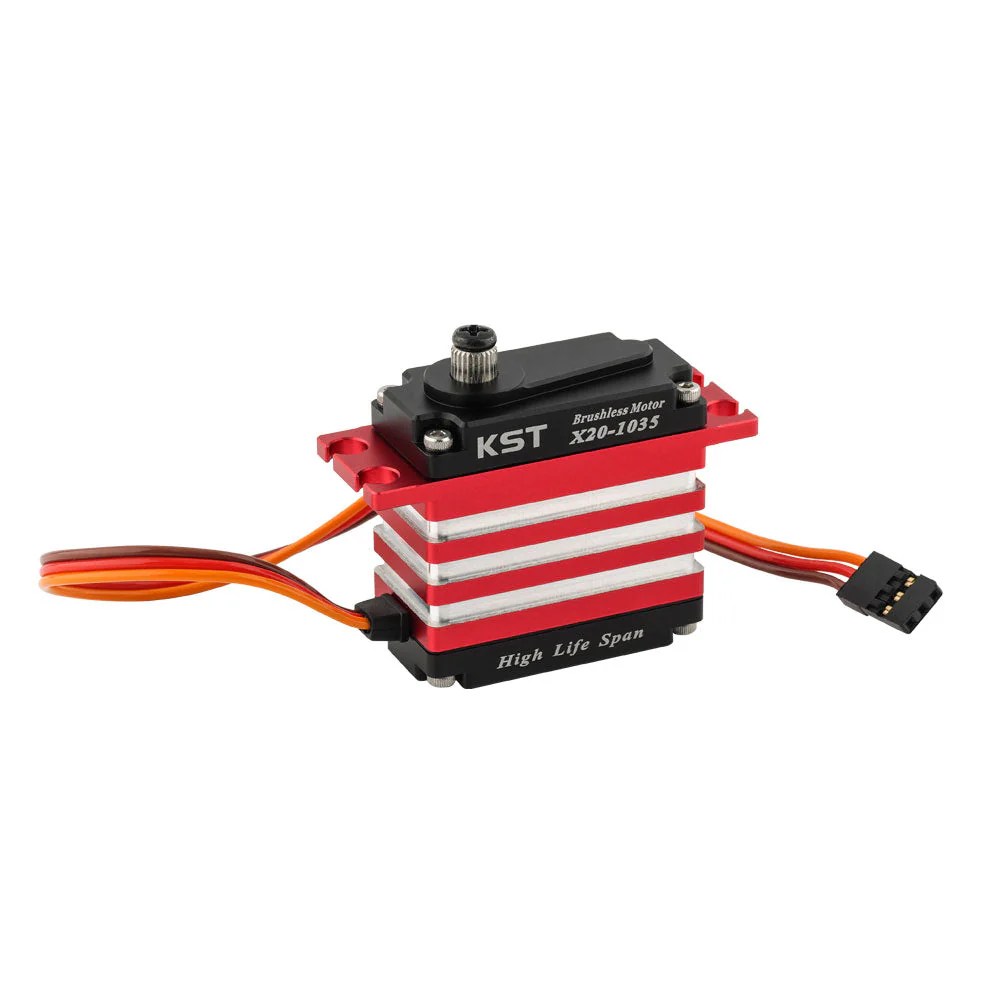

X20-1035

• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 0.9N.m@6.0V, 1.1N.m@7.4V, 1.2N.m@8.4V
• Speed: 0.040sec/60°@6.0V, 0.035sec/60°@7.4V, 0.030sec/60°@8.4V
• Working Frequency: 760us/560Hz
• Temperature Range: -10℃……+65℃
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel (HLS)
• Position Sensor: Potentiometer
• Case Dimensions: 40mm*20mm*40mm±0.2mm
• Weight: 72g±10%
